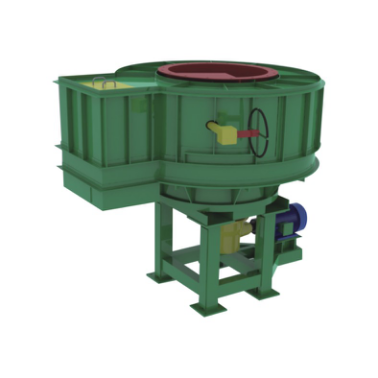

CYPB quantitative disc feeder

　　Product Description:

　　The CYPB series quantitative disc feeder is a continuous feeding volumetric feeding equipment installed in storage devices such as silos, silos, and hoppers for unloading. It relies on the gravity of the material and the forced action of the disc feeder's working mechanism to continuously and evenly feed it into the next device. When it stops working, it can also play a role in the storage lock. It is a key equipment in the continuous production process.

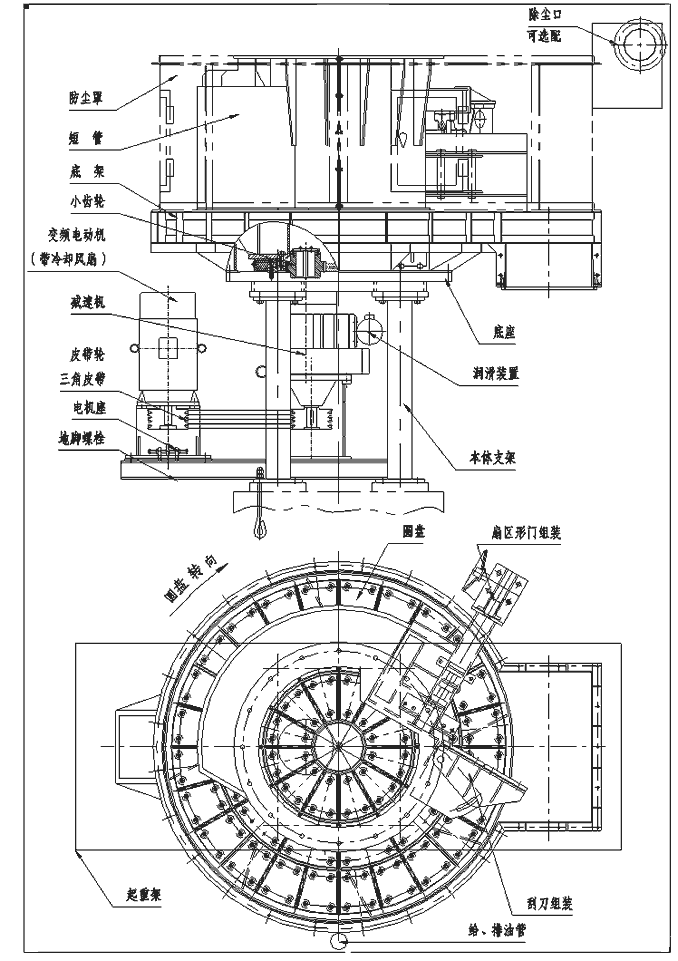

　　Structural features:

　　The CYPB series quantitative disc feeder is a new type of disc feeder designed and manufactured by our company based on the digestion and absorption of advanced foreign technology, combined with the actual situation in China. It is highly reliable, efficient, and energy-saving. Its structure is more advanced and reasonable, and it has the following

　　characteristics:

　　1. The equipment adopts a large-diameter rotating support structure, with a large bearing capacity and smooth operation.

　　2. The transmission mechanism adopts hard toothed gear transmission, which has high transmission efficiency and long service life. The installation of the reducer and motor under the panel results in a compact overall structure of the equipment.

　　3. The equipment adopts a unique sealing structure, with well lubricated and sealed transmission components, and no foreign objects entering the lubricated components, ensuring the equipment operates without any faults.

　　4. Variable frequency speed regulation adopts magnetic flux vector variable frequency control method, which has large driving torque, wide adjustment range, and high control accuracy.

　　5. The use of a fully enclosed structure in the material conveying process is beneficial for on-site cleanliness management and creating a comfortable working environment.

　　6. The equipment body and the feeding sleeve adopt a modular and detachable structure to achieve quick disassembly and assembly on site. The installation position of the discharge port can be freely selected within a 180 degree range, making it more convenient to use.
