accessory

Product Features

　　The ZFB series silo wall vibrator is an energy-saving universal product that uses a vibration motor as the excitation source. It relies on high-frequency vibration and impact force to effectively remove bridging, bridging, and blocking phenomena caused by internal friction, deliquescence, electrification, and component segregation of materials, so as to ensure the smooth discharge of materials from the silo and the necessary equipment for stable feeding. It is widely used in industries such as mining, metallurgy, chemical engineering, building materials, machinery, thermal power, refractory materials, coal, food, cement, pharmaceuticals, fertilizers, grain, casting, ceramics, abrasives, etc. for anti blocking of storage silos, facilitating assembly line operations and improving the automation level of material transportation.　　The ZFB series warehouse wall vibrator has the characteristics of small size, light weight, simple structure, energy saving and environmental protection, and simple installation. It is an ideal product to replace electromagnetic warehouse wall vibrators and attached warehouse wall vibrators.　　The ZFB series warehouse wall vibrator consists of a vibration motor and a base. The vibration motor and base are fixed together by bolts and installed on the silo wall, thus forming a single point directional forced vibration system. When the silo wall vibrator is working, the centrifugal force generated by the high-speed rotation of the vibration motor produces periodic high-frequency vibration of the silo, causing the material to be affected by the alternating speed and detach from the silo wall, eliminating the friction between the material and the silo wall, as well as the relative stability between the materials in the silo, so that the material can be smoothly discharged from the silo mouth.

YZS vibration motor

Product Features

　　Product Introduction:　　YZS vibration motor is an excitation source that combines a power source and a vibration source. The vibration motor is equipped with a set of adjustable eccentric blocks at each end of the rotor shaft, and uses the centrifugal force generated by the high-speed rotation of the shaft and eccentric blocks to obtain the excitation force. The vibration motor has high utilization rate of excitation force, low energy consumption, low noise, and long service life. The excitation force of the vibration motor can be infinitely adjusted, making it easy to use. Models such as JZO, YZU, YZO, YZS, YZD, TZDC, etc. are universal vibration motors. Vibration motors can be applied to general vibration machinery, such as vibration crushers, vibration screening machines, vibration packers, vibration sand falling machines, vibration molding machines, vibration pile drivers, vibration hoists, vibration filling machines, vibration arch breaking and anti blocking devices for silos, and so on. Widely used in industrial sectors such as hydropower construction, thermal power generation, construction, building materials, chemical industry, mining, coal, metallurgy, and light industry.　　Usage and characteristics:　　YZS vibration motor can be applied not only to general vibration machinery, but also to combine various vibration forms. For example: flat spiral type, vortex type, shaking vibration type, combined linear type, combined long elliptical type, composite dual frequency type, composite dual amplitude type, etc. These vibration forms can generate some new types of vibration machinery that were not available in the past.　　The YZS series vibration motor is a new type of vibration motor, characterized by its small size, beautiful appearance, and high cost-effectiveness. Unlike other vibration motors, its casing and base are cast together, which improves the process, reduces costs, and enhances dust resistance.

YZO vibration motor

Product Features

　　Product details introduction:　　The YZO series vibration motor is composed of an eccentric mechanism and a three-phase asynchronous motor, and is a special vibration source that combines power and vibration sources. Vibration motors have the characteristics of simple structure, easy installation, small size, light weight, reliable operation, strong universality, stepless adjustment of excitation force, and can be used as a single unit or combined into various vibration forms with low maintenance. They are widely used in metallurgy, mining, refractory, coal preparation, building materials, chemical, thermal power, grain and other industries.　　Characteristics of YZO vibration motor:　　1. The collective is lightweight, small in size, simple in structure, and easy to install and maintain　　2. The vibration frequency is stable, and smooth rotation produces low-noise vibration. It starts quickly and stops smoothly　　3. Fully enclosed structure, suitable for any working environment without explosion-proof requirements　　4. The excitation force can be infinitely adjusted　　5. Multi directional installation, suitable for both multi machine and single machine use

Casting sieve plate

Product Features

　　The casting comb plate adopts alloy powder spray welding technology, which can change the mechanical properties of the metal, strengthen the original surface, and select various alloy elements such as nickel, cobalt, iron, chromium, tungsten, etc. according to the needs, making the surface of the screen plate have high hardness and wear resistance. The hole shape is comb shaped, with significant characteristics of non clogging and high screening efficiency. It is suitable for sintering, clinker, coke, and various bulk ores in the coal, metallurgy, and chemical industries.　　Casting screen plate is a high-strength screen plate with wear resistance, corrosion resistance, and impact resistance, mainly used for screening operations of raw materials such as coal, coke, and ore under harsh environmental conditions.　　Sieve strips are mainly used in stainless steel manufacturing, with commonly used ones being 1Cr17, 1Cr13, and ordinary 45 # steel.　　The production types include high-strength wear-resistant cast steel screen plate, ordinary cast steel screen plate, stainless steel casting screen plate, and stainless steel heat-resistant casting screen plate.　　The grading particle size of the material is 6-80mm

Polyurethane sieve plate

Product Features

　　Polyurethane and rubber sieve plates are both types of polymer sieve plates, which have wear resistance, oil resistance, hydrolysis resistance, bacterial resistance, and aging resistance. These two types of sieve plates can not only significantly reduce equipment weight, lower equipment costs, and extend service life, but also reduce noise and are not easily clogged. They are widely used in vibrating screen washing and grading operations in mining, metallurgy, coal, petroleum, chemical and other industries.　　The shapes of sieve plate holes include comb teeth, square holes, long holes, round holes, slit type, bar type, etc　　Classification particle size of materials: 0.1-0mm

Bar sieve plate

Product Features

　　Rod sieve plate is a new type of structural sieve plate developed by our company based on international technology.　　The high-frequency tuning fork bar of this sieve plate generates secondary high-frequency resonance while vibrating with the sieve plate, which accelerates the material's forward speed and accelerates the sinking of particles on the sieve surface and the lateral movement of small particles that have already contacted the sieve surface towards the sieve holes, thereby increasing the probability of passing through the sieve holes. The opening of this sieve plate can reach up to 80%, and sticky substances with certain moisture can be shaken off by its high-frequency natural vibration, making it an ideal sieve plate for difficult to screen materials with viscosity or fibers.　　The production types include single-layer bar sieve plate, double-layer bar sieve plate, horizontal bar sieve plate, polyurethane bar sieve plate, and ceramic bar sieve plate.　　Scope of application: Classification, sintering, pelletizing, coking coal, ore, etc. of raw coal.　　Classification particle size of materials: 5-40mm

Product Features

　　Product Introduction：　　Rubber spring is a general term for rubber shock absorber blocks, which can also be called: rubber pile, composite spring, rubber spring, metal spring, composite coil spring, rubber shock absorber block, etc. depending on language habits.　　Rubber spring is a highly elastic material made of ordinary rubber. Rubber springs have a small elastic modulus and undergo significant elastic deformation under load to absorb impact and vibration. It can withstand multi-directional loads simultaneously, but its high temperature resistance and oil resistance are inferior to steel springs. If there are special requirements, it can be made of oil resistant rubber. This product has good vibration reduction effect, small resonance field, long service life, low cost, as well as good cold resistance, excellent airtightness, waterproofness, and electrical insulation, making it the best choice for vibration reduction.　　Advantages of rubber springs：　　1. Rubber springs have a relatively high internal resistance, which plays a good role in absorbing sudden impacts or high-frequency vibrations, as well as sound insulation;　　The shape of rubber springs is not controlled, and the stiffness in various directions can be selected according to the actual situation, without a unified standard, which can better utilize space;　　3. Rubber springs can withstand loads from multiple directions simultaneously, and the same rubber spring can also withstand them, simplifying the structure of the system;　　4. The elastic modulus of rubber springs is relatively small, but the resulting elastic deformation is relatively large, making it easy to achieve nonlinear characteristics and reach the ideal state;　　5. The installation and disassembly of rubber springs are relatively convenient and easy to maintain;　　During use, rubber springs do not require lubrication and are convenient and fast.　　Product application：　　Rubber springs are commonly used in industrial machinery such as vibration machines, double decker buses, and heavy-duty trucks to provide vibration reduction and buffering effects in mechanical equipment, vehicle walking mechanisms, and suspensions. Rubber springs can also be designed in various structural forms according to work needs.

Composite spring

Product Features

　　Product Introduction：　　Composite spring is an elastic body composed of metal coil spring and rubber, which combines the advantages of metal spring and rubber spring and overcomes their disadvantages. Stable in shape and mechanical properties, capable of withstanding loads and large deformations. Good vibration isolation and noise reduction effect, with advantages such as smooth operation and short resonance zone time, especially suitable for large vibration equipment or large shock absorption equipment in industries such as mining, metallurgy, and coal.

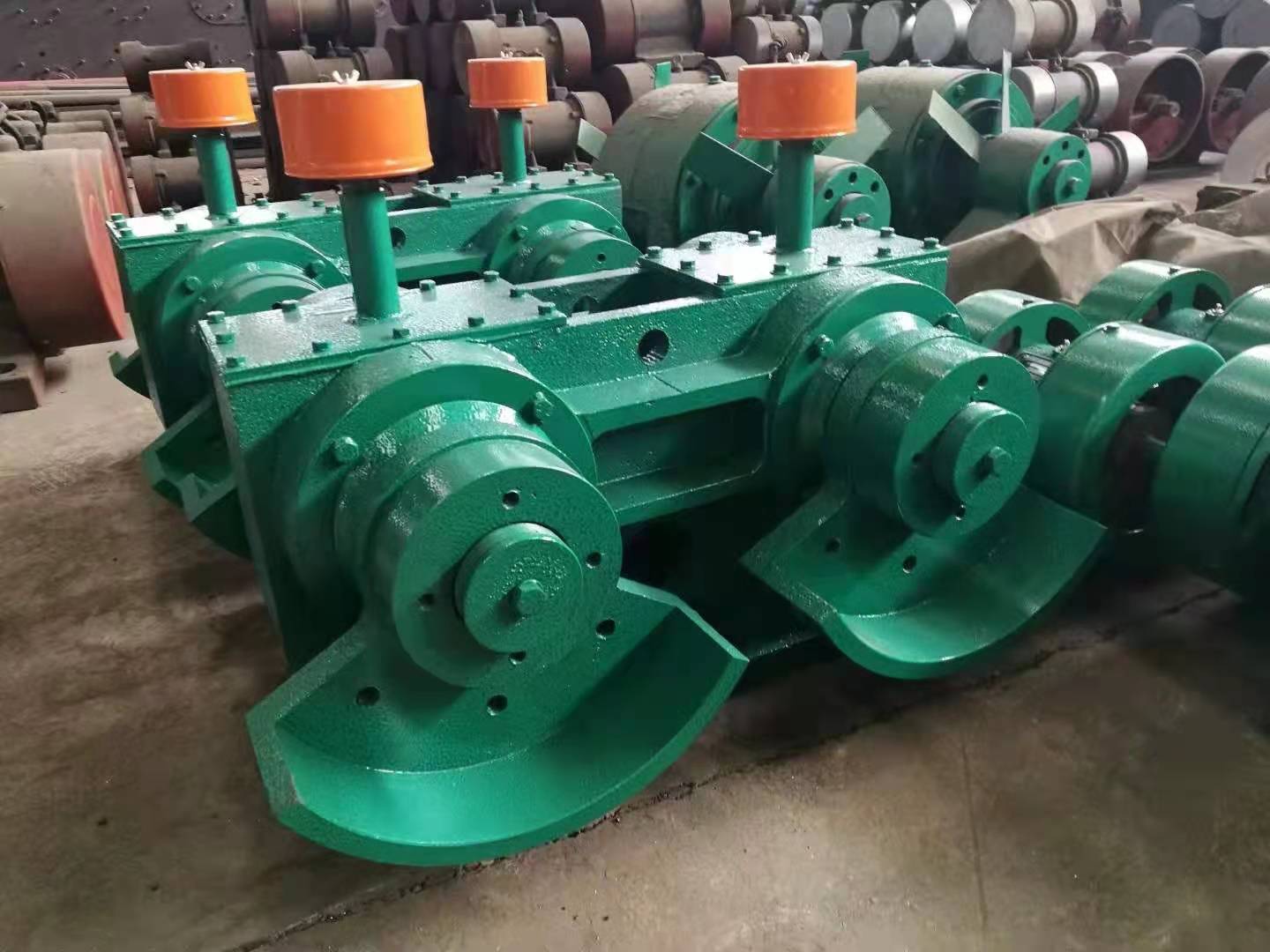

Thin oil shaker

Product Features

Thin oil shaker

Product Features

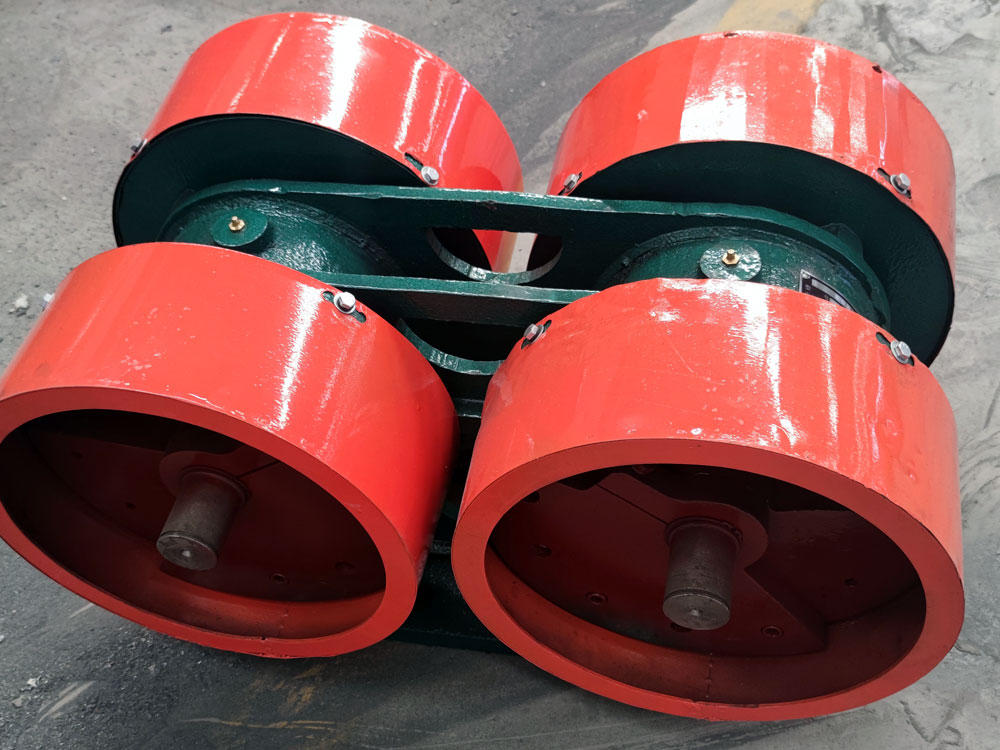

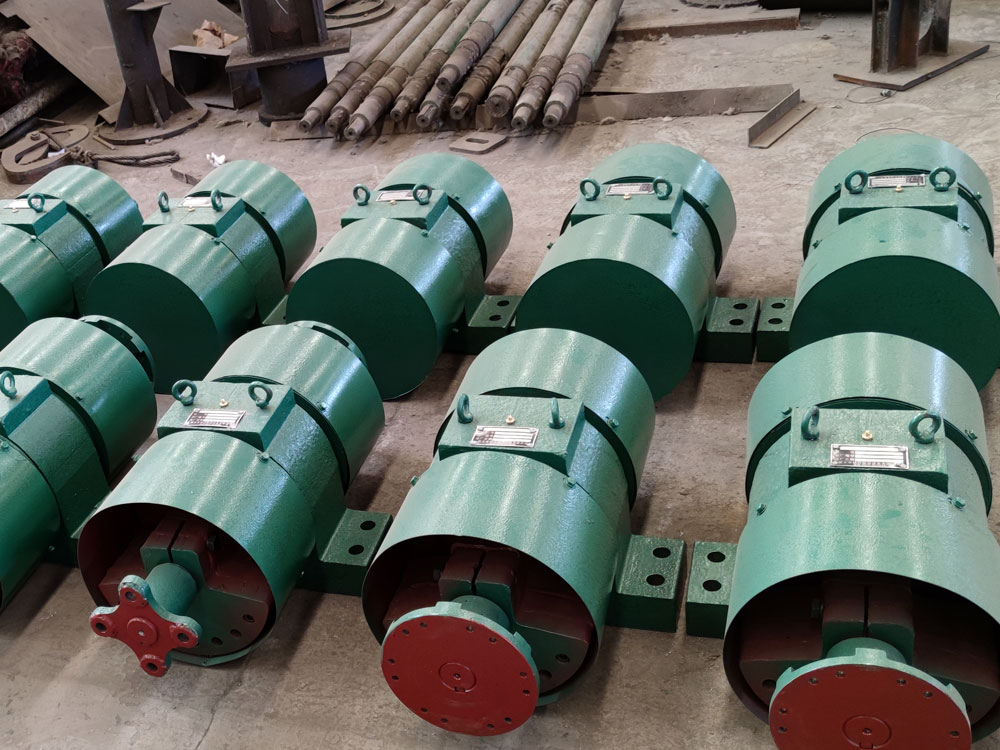

Product Features

　　Product Introduction：　　Our company is a professional manufacturer of vibration equipment, producing vibration equipment and supporting products for various occasions - excitation sources.　　The CJZ series exciter is one of the updated and improved new types of exciter sources. The exciter is seat type and is used in conjunction with ordinary motors. The motor does not participate in vibration, and the exciter bearings are lubricated with thin oil or grease. It has a long service life and is economical and simple, making it an ideal exciter source for vibration equipment. This series of exciters is mainly suitable for large screening machines.　　working principle：　　The working principle of the vibration elastic exciter is to use a self synchronous inertial exciter. The two shafts of the exciter are driven by two motors with similar characteristics, relying on the principle of vibration synchronization to achieve constant speed and reverse rotation of the two shafts with eccentric blocks, thereby obtaining the excitation force.　　Structural composition：　　The vibration elastic exciter consists of two shafts, a box shell, an end cover, an eccentric block, etc.　　Technical features and advantages:　　1. Utilize the principle of self synchronization to generate linear vibration in vibrating machinery.　　2. When working, fix the exciter on the excited component, and the excited component will obtain the required vibration.　　3. Lubrication methods: grease lubrication and thin oil lubrication, customized according to customer requirements.　　4. The electric motor is installed on a fixed base on the side (left or right) of the vibrating machinery, and does not participate in vibration. The electric motor is connected to the vibrator with a universal joint shaft.　　5. The eccentric block is easy to adjust and disassemble.　　6. Both contact and axial labyrinth seals are used, with good sealing performance.　　7. Oil injection holes are installed above the casing to ensure good lubrication of the bearings.　　8. It has the advantages of light weight, small size, simple structure, easy installation and maintenance, and long service life,　　9. It has the characteristics of stable and reliable operation, flexible adjustment, and low maintenance.　　Outline diagram:modelexcitation forceMain structural dimensions mmEquipped with motorShaft head keyKNABCDEFLMdΦ1hH4-φ4-MmodelpowerCJZ-30-630326184270400300480410422603522028Y112M-62.2*210*8CJZ-80-680120340210410400380486513503803227028M27*2Y132M-64*214*9CJZ-100-6100120340210410400380642538503803227028M27*2Y132M2-65.5*214*9CJZ-130-6130120340210410400380642538503803227028M27*2Y132M2-65.5*214*9CJZ-50-650160320240356400310517407503143023528M27*2Y132S-63*214*9CJZ-75-675160320240410400320484424503803227028M27*2Y132S-63*214*9CJZ-160-6160160320240460400320592524504563634537M36*2Y160M-67.5*214*9CJZ-180-6180160320240460400320754610544563634537M36*2Y160L-611*214*9
