Conveyor equipment

Product Features

　　Product Overview:　　The SCG series long-distance high-temperature material vibration conveyor is widely used in industries such as mining, metallurgy, building materials, coal, chemical, grain, and medicine to transport various powders, granules, blocks, and their mixtures with temperatures below 300 ℃. It is a highly versatile and structurally advanced high-temperature material vibration conveying equipment. For example, the transportation of raw materials, intermediate semi-finished products, and finished products in the cement industry, the transportation of solid raw materials and semi-finished products in the chemical industry, the transportation of ores, concentrates, and tailings in the mining industry, and so on. It is a highly versatile and structurally advanced vibration conveying equipment.　　Scope of application:　　The SCG series long-distance high-temperature material vibration conveyor is widely used in industries such as building materials, metallurgy, chemical engineering, mining, machinery manufacturing, coal, tobacco, grain, and medicine. Mainly used for conveying materials such as powder, granular, block, and their mixtures. For example, the transportation of raw materials, intermediate semi-finished products, and finished products in the cement industry, the transportation of solid raw materials and semi-finished products in the chemical industry, the transportation of ores, concentrates, and tailings in the mining industry, and so on.　　working principle:　　The SCG series long-distance vibration conveyor uses two vibration motors as excitation sources, and applies the principle of self synchronization. The two vibration motors rotate in reverse, causing the bottom balance frame of the conveyor to produce reciprocating vibration. Through the action of the main vibration spring and guide plate spring, the upper conveyor groove is driven to vibrate, thereby achieving the purpose of conveying materials. There are two types of SCG long-distance vibration conveyors: open and closed. The cross-section of the material trough can be made into various forms such as circular, rectangular, and trapezoidal. The feeding and discharging of the material trough can also be made into various types such as one point feeding, one point discharging, one point feeding, multi-point discharging, multi-point feeding, and one point discharging as needed. When the conveying distance is long, multiple conveyors can be connected to transport. The SCG long-distance vibration conveyor material trough is supported by rubber springs or steel springs, and relies on the self synchronous operation of two vibration motors fixed on the material trough to generate linear vibration.　　Main features:　　1. It can be transported in a fully enclosed manner to eliminate dust pollution, or it can be transported in an open manner.　　2. Large conveying capacity, good insulation effect, no need for cooling device, low power consumption.　　3. Simple structure, easy debugging, limited variety of vulnerable parts, and convenient maintenance.　　4. Quick start and stop, smooth operation, good vibration isolation performance, and low noise.　　5. Easy to install, no special foundation or corner bolts required, easy to move position.　　6. The distance of a single conveyor can reach 20 meters, and the flexible connection of multiple machines can be extended as needed.　　7. It can be fed and unloaded at multiple points, suitable for conveying cement clinker and slag at the bottom and top of the warehouse.modelSCG300SCG400SCG600SCG800Single machine conveying distance（m）4580245894Transportation output（T/H）≤15≤25≤40≤60Electric power（TW）3-7.55.5-15Weight per meter of equipment（KG/M）300500700800Material properties, particle size（MM）0.5<D<1000.5<D<200Material properties Temperature（℃）<300Material properties, moisture content, and viscosityNon viscous, non flammable and non explosive materials with a moisture content of less than 5%　　Note:　　The conveying output is determined based on cement clinker with a bulk density of 1.6 tons/m3 and a temperature below 300 ℃.　　If conveying other materials, the following companies can be used to convert production volume　　Q=a*Q’Qλ/1.6　　The reduction factor is approximately 0.5-1. Take the small value for powdered materials and the large value for bulk materials.　　Q '- Output shown in the table　　λ - specific gravity of conveyed material

View details >

WLS shaftless screw conveyor

Product Features

　　Product Overview:　　Compared with traditional screw conveyors with shafts, shaftless screw conveyors have the following outstanding advantages due to the adoption of a centerless shaft design and the use of a flexible integral steel screw to push materials: strong resistance to entanglement. The shaftless screw conveyor is a new type of screw conveyor independently developed by our company based on the actual situation where LS and GX types of screw conveyors are used in industries such as building materials, chemical, environmental protection, power, medicine, metallurgy, and food to transport materials with high abrasion resistance, high viscosity, easy agglomeration, and easy entanglement of materials, resulting in material blockage and damaged suspension bearings that prevent the screw machine from working properly. This product is suitable for continuous and uniform conveying of loose, viscous, and easily entangled materials. The maximum temperature of the conveyed material can reach 100 ℃, and the maximum inclination angle is less than 45 °.　　Structure and working principle:　　The shaftless screw conveyor is mainly composed of a driving device, head assembly, casing, shaftless screw body, groove lining plate, feeding port, discharging port, machine cover (when needed), base, etc.　　Drive device: Adopting cycloidal pinwheel reducer or shaft mounted hard tooth surface gear reducer, the drive device should be designed to be located at the discharge port end as much as possible, so that the spiral body is in a tensile state during operation. The head is equipped with thrust bearings that can withstand the axial force generated during material transportation.　　Chassis: The chassis is U-shaped or O-shaped, with a rainproof cover on the top, made of stainless steel, carbon steel, or fiberglass.　　Axial free spiral body: made of stainless steel or carbon steel.　　Tank lining plate: made of wear-resistant plastic plate, rubber plate, cast stone plate, etc. Inlet and outlet: There are two types: square and circular. Generally, the form of inlet and outlet is determined by the user.　　Main features:　　The shaftless screw conveyor can transport materials that traditional shaft screw conveyors and belt conveyors cannot or are difficult to transport, such as granular and powdery materials, wet and paste materials, semi fluid and viscous materials, materials that are prone to entanglement and blockage, and materials with special hygiene requirements. The performance characteristics of the shaftless screw conveyor are: compared with the traditional shaft screw conveyor, the shaftless screw conveyor has outstanding advantages and good environmental performance due to the use of a non central shaft design and the use of a flexible integral steel screw to push materials. Compared to screw conveyors with shafts, the weight and cost will be significantly reduced.　　1. Good environmental performance. The use of fully enclosed and easy to clean spiral surfaces ensures that the conveyed material is not contaminated and will not leak during transportation.　　2. The conveying capacity is large, which is 1.5 times that of a screw conveyor with a shaft of the same diameter.　　3. Large turning distance, low energy consumption, and unobstructed discharge port.　　4. Long conveying distance, single machine conveying length can reach 60-70m.　　5. Compact structure, space saving, beautiful appearance, easy operation, economical and durable.　　Technical parameters:WLS type10016020025031540050063080010001250Spiral diameter(mm)10016020025031540050063080010001250pitch(mm)100160200250315355400450500560630rotational speed(r/min)140120909075756060453530Conveying capacityQ=0.33 ( m3/h )2.27,6112236.466.193.1160223304458Power Pd l=10m(KW)1.11.52.22.43.25,14.18.6121624.4Power Pd l=30m(KW)1.62.83.25.38.41115,325.9364873.3rotational speed (r/min)12090757560604545353020Conveying capacity Q=0.33 ( m3/h )1.95.7181829.152.969.8125174261305Power Pd l=10m(KW)11.32.12.12.94.14.76.89.414.116.5Power Pd l=30m(KW)1.52.34.54.578.911.620.428.342,249.5rotational speed (r/min)9075606045453535302016Conveying capacity Q=0.33 ( m3/h >1.44.8151521.839.654.397149174244Power Pd l=10m(KW)0.91.21.91.92.53.44.35.48.19.513.3Power Pd l=30m(KW)1.22.23.83.85,46.89.21624.428.639.9rotational speed (r/min)7560454535353030201613Conveying capacity Q=0.33 ( m3/h >1.23.811111731.746.57399.3139199Power Pd l=10m(KW)0.751.11.61.62.13.13.74.65.77,711Power Pd l=30m(KW)1.11.83.43.44.45.681416.723.233

View details >

LS screw conveyor

Product Features

　　Product details introduction:　　The LS type screw conveyor has a diameter ranging from 100mm to 1250mm, with a total of twelve specifications, divided into two forms: single drive and double drive. The maximum length of the single drive screw machine can reach 40m (extra large 30m), while the double drive screw machine adopts a middle disconnect shaft structure, with a maximum length of 80m (extra large 60m). The length of the screw machine is adjusted every 0.5 meters, and can be selected according to needs. The head and tail bearings of the screw machine are placed outside the housing to reduce dust intrusion into the bearing chamber and improve the service life of the screw key components. The intermediate suspension bearing adopts two interchangeable structures of rolling and sliding, with low resistance, strong sealing, and good wear resistance. The bearing shells of sliding bearings are made of various materials such as powder metallurgy, nylon, and Babbitt alloy for users to choose according to different working conditions. The outer side of the suspension bearing machine is equipped with an oil cup, which is convenient for centralized refueling and lubrication. The layout of the inlet and outlet positions is flexible, and an electric discharge outlet is added for automatic control. Speed measurement alarm devices can also be configured according to user requirements.　　Product features and application scope:　　The LS type screw conveyor has a diameter ranging from 100mm to 1250mm, with a total of twelve specifications, divided into two forms: single drive and double drive. The single drive screw machine can reach a maximum length of 40m (extra large 30m), while the double drive screw machine adopts a middle disconnect shaft structure, with a maximum length of 80m (extra large 60m). The length of the screw machine can be selected in increments of 0.5 meters according to needs. The head and tail bearings of the screw machine are placed outside the housing to reduce dust intrusion into the bearing chamber and improve the service life of the key components of the screw mechanism. The intermediate suspension bearing adopts two interchangeable structures of rolling and sliding, with low resistance, strong sealing, and good wear resistance. The bearing shells of sliding bearings are made of various materials such as powder metallurgy, nylon, and Babbitt alloy for users to choose according to different working conditions. The outer side of the suspension bearing machine is equipped with an oil cup, which is convenient for centralized refueling and lubrication. The layout of the inlet and outlet positions is flexible, and an electric discharge outlet is added for automatic control. Speed measurement alarm devices can also be configured according to user requirements.　　Screw machines have been widely used in the building materials, metallurgy, chemical, power, coal, machinery, light industry, grain and food industries, suitable for conveying powdery, granular, and small block materials such as cement, coal, grain, fertilizers, ash, sand, coke, etc. It is not suitable to transport logistics that are prone to spoilage, high viscosity, and clumping. The working environment temperature of LS screw conveyor is -20 ℃ -40 ℃, and the temperature of conveyed materials is generally -20 ° -80 ℃. LS screw conveyor is suitable for horizontal and small inclination arrangement, and the inclination angle should not exceed 15 ℃. Special design and manufacturing can be carried out.　　2、 Model specifications and technical parameters (see Table 1)The LS type screw conveyor is divided into small, medium, large, and extra large sizes, with a total of twelve specifications.Model specificationsSpiral diameter mmPitch mmrotational speed r/minConveying capacity m³/hrotational speed r/minConveying capacity m³/hrotational speed Conveying capacity rotational speed r/minConveying capacity r/minm³/hm³/hSnφ=0.33nφ=0.33nφ=0.33nφ=0.33small-scaleLS1001001001402.21121.7901.4711.1LS1251251251253.81003802.4631.9LS1601601601127.1905.7714.5563.6LS20020020010012.4809.9637.8506.2medium-sizedLS2502502509021.87117.25613.64510.9LS3153153158038.86330.55024.24013.4LS4004003557162.55649.34538.63631.7largeLS5005004006397.75077.640623249.6LS63063045050138.540110.83288.62569.3LS80080050040198.532158.825124.12099.3Extra LargeLS1000100056032277.925217.120173.716139LS1250125063025381.720305.416244.313198.5　　3. Appearance and installation dimensions:　　The assembly diagram of LS type screw conveyor is shown in Figure 1 and Figure 2, and the small-sized machines (LS100, LS200) do not have a dual drive form;Figure 1 LS type spiral machine (I) single driveThe corresponding dimensions are shown in Table 2. The LO size in the table is set every 500mm.modelhh1lC3BFL0PQRT1T2XYdeLS100140632500100180501000~30006010001901201102321702542LS125160752500130210501000~30006010002201301302521703058LS160180902500160244501000~30006010002501501502541763558LS2002001122500200304501000~30006010002851801802851824082LS2502501403000250356501000~35006010003302102202921885082LS31528018030003204201001000~350060100038025025032219060105LS40035522430004005301001000~350060100043030028040621270140LS50040028040005006321001500~5000100100050036034044121880170LS63050035540006307681501500~50001001000570430420528240100210LS80063045040008009981501500~50001001000710530520542260120210LS10007105604500100012122001500~55001001000810640630616272140250LS12508007104500125014622001500`550010010001000880760671284170300Note: The size R is the minimum size for the feed inlet; The size Q is the minimum size.Figure 2LS Spiral Machine (II) (Dual Drive)Length and combination (see Table 3)Model specificationsscolextelsonA-type dual driveB-type dual driveStandard section IL0Intermediate sectionIntermediate sectionsmall-scaleLS100～LS2002.511.522.53medium-sizedLS250～LS400311.522.533.5L0I+L0largeLS500～LS80041.522.533.544.55Extra LargeLS1000～LS12504.51.522.533.544.555（See the end section）（See the beginning and end section）The length of a single drive screw machine (every 0.5m) is L=n1+L0 (n1), and its combination is: 1 head section+(n-1) standard section+1 tail sectionDouble drive screw machine length (every 0.5m) (1) adopts A-type double drive intermediate section: L=21+L0 (2) adopts B-type double drive intermediate section: L=2n+(1+L0)Its combination is: 2 head joints+2 (n-1) standard joints+1A (B) type dual drive middle

View details >

GX type screw conveyor

Product Features

　　GX Spiral Conveyor Product Overview:　　GX screw conveyor has been widely used in various sectors of the national economy, such as building materials, metallurgy, chemical industry, power, coal, machinery, light industry, grain and food industries. It is suitable for conveying powdery, granular, and small block materials, such as cement, coal powder, grain, fertilizer, ash, sand, coke, etc It is not suitable to transport materials that are prone to deterioration, high viscosity, and clumping. The working environment temperature of LS screw conveyor is usually -20~40 ℃, and the temperature of conveyed materials is generally -20~80 ℃. GX screw conveyor is suitable for horizontal and small inclination arrangement, and the inclination angle should not exceed 15 °. If the inclination angle is too large, please choose GX series screw conveyor or contact our technical department for separate design.　　Main features and working principle of GX screw conveyor:　　1. High load-bearing capacity, safe and reliable.　　2. Strong adaptability, easy installation and maintenance, and long service life.　　3. The whole machine has a small volume, high speed, and ensures fast and uniform conveying.　　4. Good sealing performance, the shell is made of seamless steel pipe, and the ends are connected to each other with flanges to form a whole, with good rigidity.　　Installation diagram of GX series screw conveyor:Main technical parameters of GX series screw conveyor:GX type200250300400500Spiral diameter (mm)200250315400500 Pitch (mm)200250315355400rotational speed (r/min)9090757560Conveying capacity QΦ=0.33（m3/h）112236.466.193.1Power Pd 1=10m(KW)2.22.43.25.14.1Power Pd 1=30m(KW)3.25.38.41115.3rotational speed (r/min)7575606045Conveying capacity QΦ=0.33（m3/h）181829.152.969.8Power Pd 1=10m(KW)2.12.12.94.14.7Power Pd 1=30m(KW)4.54.578.911.6rotational speed (r/min)6060454535Conveying capacity QΦ=0.33（m3/h）151521.839.654.3Power Pd 1=10m(KW)1.91.92.53.44.3Power Pd 1=30m(KW)3.83.85.46.89.2rotational speed (r/min)4545353530Conveying capacity QΦ=0.33（m3/h）11111731.746.5Power Pd 1=10m(KW)1.61.62.13.13.7Power Pd 1=30m(KW)3.43.44.45.68GX Spiral Conveyor Dimensions:modelWABCDNRYLKMSPOHVJTGGX150200017023621610819019011214010013517270110160161951000、1500、2000GX200250022030627210822019011218020016525308140200162501500GX250250027035633010827019014022019528356200260203002000GX300250032042838514830019021427022528443240320203502500GX400300042052849214835019022434030028030533320400254301500GX500300052866261217845019028040034035662400500254902000GX600300062876272017855019025550043040760500600305603000

View details >

TH bucket elevator

Product Features

　　Product Overview:　　The TH type bucket elevator is a new generation elevator that is equivalent to the international standard ISO5050-81. Suitable for vertical transportation of low abrasive materials such as grain, coal, and cement in powder, granular, and small block forms. Crushed ore, etc., with a material stacking density not exceeding 1.5t/m ³; The material temperature shall not exceed 250 ℃.　　Structural characteristics and working principle:　　The TH series bucket elevator consists of a tail part, a middle groove body, a head part, a bucket chain component, and a drive device. Fully enclosed casing ensures no material leakage during equipment operation. The lifting conveyor chain adopts stamped plate type chain, which can be arranged in single chain and double chain types. The head is equipped with a backstop for reliable backstop. The inlet and outlet of the equipment, as well as the lifting height, can be flexibly designed and arranged according to the process requirements. TH type is a circular chain bucket elevator that uses mixed or gravity unloading and digging loading. High quality alloy steel high circular chain is used for traction components. The central casing is divided into two forms: single channel and double channel. The internal heavy hammer box is automatically tensioned with constant force. The sprocket adopts a replaceable wheel rim combination structure. Long service life and easy replacement of wheel rims. The lower part adopts a gravity automatic tensioning device, which can maintain a constant tension force, avoid slipping or chain detachment. At the same time, the hopper has a certain tolerance when encountering jamming caused by accidental factors, which can effectively protect the lower shaft and other components. This bucket elevator is suitable for conveying powdery, granular, and small block shaped bottom grinding materials with a bulk density of less than 1.5t/m3 that are easy to remove. Such as coal, cement, gravel, sand, fertilizers, grains, etc. TH type bucket elevator is used for vertical conveying of various bulk materials. Suitable for conveying powdery, granular, and small block materials, with material temperatures below 250 ℃.　　Main features:　　1. Easy maintenance and long lifespan.　　2. The casing steel plate is thickened and has good rigidity.　　The maximum temperature for conveying materials can reach 250 ℃.　　4. The middle section casing has two forms: single channel and dual channel.　　5. Elevate the height to ensure smooth and reliable operation, low noise, and easy maintenance.　　6. The improved model increases the conveying capacity by more than 30% compared to ordinary models.　　7. The hoist ring chain is forged from low-alloy steel and undergoes carburizing and quenching treatment, possessing extremely high tensile strength and wear resistance.modelTH315TH400TH500TH600Type of hopperZHSHZHSHZHSHZHSHConveying capacity（m3/h）3559589473118114185bucket capacity（L）3.7565.99.59.31514.623.6pitch of buckets（mm）512688Round steel diameter x pitchΦ18x64Φ12.1x86Single chain strength component≥ 320≥ 480Traction weight per unit length (kg/m)25.6426.573131.941.544.24952.3Drive sprocket speed (RPM)42.537.635.831.8Maximum particle size of conveyed materials（mm）35405060Maximum particle size of conveyed materials（m/t）1.41.5pourZH Representative of Zhongshen DouSH Representing Deep Struggle

View details >

TD bucket elevator

Product Features

　　Structural characteristics and working principle: The TD series bucket elevator consists of a tail part, a middle groove body, a head part, a bucket chain component, and a driving device. Fully enclosed casing ensures no material leakage during equipment operation. The lifting conveyor belt is made of rubber belt, with an external bucket layout and a head equipped with a reliable backstop. The inlet and outlet of the equipment, as well as the lifting height, can be flexibly designed and arranged according to the process requirements.　　The material is uniformly introduced into the hopper installed and fixed on the lifting tape for continuous closed operation through the equipment inlet, and lifted from the tail inlet to the head outlet for discharge, achieving single point feeding, single point centrifugal or mixed discharge. The lifting conveyor belt adopts a screw adjustment device to adjust the tightness of the conveyor belt, ensuring that it always maintains a moderate tension state during operation and keeps the equipment in a stable operating state.　　Applicable materials:　　TD and D-type tape bucket elevators are suitable for vertically conveying powdery, granular, and small bulk materials with low grinding properties, such as grains, coal cement, crushed ores, etc. The maximum lifting height is 40m. Its characteristics are: simple structure, smooth operation, digging type loading, centrifugal unloading, and material temperature not exceeding 60 ℃. TD type is designed and manufactured according to JB3926-85 "Vertical Bucket Elevator" standard. Compared with traditional D-type bucket elevators, it has high conveying efficiency and multiple hopper types, and should be preferred.　　The advantages of this elevator are:　　1. The TD type has a large conveying capacity, and compared to the D type with the same bucket width, the conveying capacity is nearly doubled. 2. The traction parts use high-strength rubber conveyor belts with high tensile strength and long service life. 3. The overall structure is simple, easy to install, and convenient for adjustment, maintenance, and upkeep.　　4. The traction component is a low-alloy high-strength circular ring chain, which, after appropriate heat treatment, has high tensile strength and wear resistance, and a long service life. This hoist is used for centrifugal or mixed unloading and extraction loading, and is suitable for conveying low abrasive materials with a bulk density of no more than 1.5t/m3, including powder, granular, and small pieces. The temperature of the materials should not exceed 60 degrees. This series of bucket elevators is equipped with four types of hoppers: Q-type (shallow hopper), H-type (arc bottom hopper), zh type (medium deep hopper), and sh type (deep hopper), which respectively transport various materials. Users can choose the appropriate hopper according to the characteristics of the materials.　　Installation dimensions of TD-D bucket elevator:Technical parameter table of TD-D bucket elevator:modelTD160TD250TD315TD400Form of hopperQhzDSdQhzDSdQhzDSdQhzDSdConveying capacity(m3/h)5.49.69.616122223351730254024464166Dou Kuan(mm)160250315400bucket capacity(L)0.50.94.21.91.32.234.623.63.85.83.15.65.99.4pitch of buckets(mm)280350360450400500480560bandwidth(mm)200300400500Dou Speed(m/s)1.41.61.61.8Large chunks of material quantity(mm)25354555modelTD500TD630TD160TD250TD350TD450Form of hopperQhzDSdhzDSdQSQSQSQSConveying capacity(m3/h)3870589285891424.78182225425072Dou Kuan(mm)500630160250350450bucket capacity(L)4.899.3151414.623.50.651.12.63.277.814.515pitch of buckets(mm)500625710300400500640bandwidth(mm)600700200300400500Dou Speed(m/s)1.8211.251.251.25Large chunks of material quantity(mm)607025354555　　explain:　　1. The bucket capacity in the table is calculated, and the conveying capacity is calculated based on a filling coefficient of 0.6.　　2. The purpose of the hopper of the bucket elevator is:　　Shallow hopper: Conveys materials that are damp, prone to clumping, and difficult to throw out. Such as wet sand, wet coal, etc.　　Deep hopper: Conveys dry, loose, and easily thrown materials. Such as cement, coal, gravel, etc.

View details >

HL bucket elevator

Product Features

　　Product Overview:　　The HL bucket elevator is suitable for vertically conveying powdery, granular, and small block materials with high grinding properties, such as grains, coal, cement, crushed ores, etc. The conveying height is very high at 40m, characterized by a simple structure, smooth operation, pull-out loading, mixed or gravity unloading, and a combination sprocket wheel rim for easy replacement. The sprocket wheel rim has a long service life after special treatment. If a gravity automatic tensioning device is used in the lower part, it can maintain a constant tension, avoid slipping or chain detachment, and at the same time, it has a certain tolerance to effectively protect moving parts when the hopper encounters resistance. The material temperature does not exceed 250 ℃.　　HL bucket elevator is a type of bucket elevator, which consists of an upper section with a transmission sprocket, a lower section with a tension sprocket, a middle casing drive device, and a reverse brake device. The hopper of this elevator is intermittently arranged, and the hopper is loaded using the "picking method" and unloaded using the "centrifugal feeding method". This hoist is suitable for conveying non abrasive materials in powder, material, and small pieces. Due to the traction mechanism of the hoist being a circular chain, it allows for the transportation of materials with higher temperatures.　　Structure and working principle:　　The HL bucket elevator consists of a moving part (hopper and traction chain), an upper section with a transmission sprocket, a lower section with a tension wheel, a middle housing, a driving device, a reverse braking device, etc. The hopper of this elevator is arranged intermittently, using the "digging method" for loading and the "centrifugal feeding method" for unloading. The traction mechanism of this elevator consists of two circular chains.　　HL bucket lifting mechanism method and installation method　　1. According to the shape of the hopper, there are two types: S method - with a deep circular bottom hopper; Q method - with a shallow circular bottom hopper.　　2. There are two types of discharge ports according to the form of the upper section: X1 method - discharge port with inclined flange; X2 method - discharge port with horizontal flange.　　3. There are two types of feeding ports according to the form of the lower section: J1 method - the inclined surface of the feeding port forms a 45 degree angle with the horizontal plane; J2 method - the inclined surface of the feed inlet forms a 60 degree angle with the horizontal plane.　　4. There are four types of inspection doors on the side of the middle casing: K1 method - the middle casing side has a lower left inspection door; K2 manufacturing method - the side of the middle casing has a lower right inspection door; K3 method - the side of the middle casing has an upper left inspection door; K4 method - the side of the middle casing has an upper right inspection door.　　5. There are two types of inspection doors based on the position of the middle casing end face: Z1 method - the middle casing end face has a lower inspection door; Z2 manufacturing method - the middle casing end face is equipped with an upper inspection door.　　6. According to the relative position of the transmission device to the elevator, it can be divided into two types: left installation - the transmission device is on the left side; Right side installation - the transmission device is on the right side.　　Main features:　　1. Smooth operation and high conveying efficiency;　　2. There are many types of hoppers, so they should be prioritized for selection;　　3. Strong adaptability, easy installation and maintenance, long service life;　　4. The whole machine has a small volume, high speed, and ensures fast and uniform conveying.projectElevator modelHL300HL400S Preparation methodQ Preparation methodS Preparation methodQ Preparation methodTransportation capacity，㎡/h281647.230hopper capacity，升5.24.410.510Dipper distance, millimeters500500600600Running part (hopper traction chain) kg/m24.82429.228.3Traction chaintypeForging a circular chainRound steel diameter mm1818pitch（mm）5050breaking strength kg1280012800Hopper movement speed（m/s）1.251.25Drive chain shaft speed37.5 RPM37.5 RPMBulk specific gravity of conveyed materialsH,mN,kWH,mN,kWH,mN,kWH,mN,kW0.8596.35644.36307336.31527.55605.12277.63071.25418.7495.3238267.61.6319.7395.318.58.4228.22249.7295.35158.6188.4Transmission device manufacturing methodC1C2C3C4C1C2Cylindrical gear reducerRight mounted transmission deviceJZQ400—IV—3UJZQ400—IV—3ULeft mounted transmission deviceJZQ400—IV—4YJZQ400—IV—4YMotor ModelY132M2—6Y160M—6Y160L—6Y160M—6Y160L—6Transmission device power（kw）5.57.57.57.57.57.5Ratchet braking device (gear X module)6X186X188X158X156X188X15transmission gear weight（kg）628702870885902917The block size of materials(mm)25354555

View details >

GTH bucket elevator

Product Features

　　Product Overview:　　Following the extensive application of TH bucket elevator in various industries, Xinxiang Chengxin Vibrating Equipment Co., Ltd. introduced, developed and produced a new generation of GTH bucket elevator with high efficiency according to the needs of the domestic market and on the basis of maintaining the original advantages and advanced performance of TH bucket elevator. This model is a new product integrating progressiveness technology, product economy and reliability of use and maintenance. It has been put into the market and has reached high praise from users. Welcome to compare and choose.　　Characteristics and Applications:　　1. The PTH bucket elevator has the characteristics of large conveying capacity, high lifting height, stable operation, and long service life Suitable for vertical transportation of dry bulk materials, it can be widely used in material transportation systems in industries such as building materials, chemicals, coal, electricity, and port transportation　　2. The GTH type is a ring chain with high-strength ring chains as traction components. The chain is manufactured according to GB/T12718-91 "High strength circular ring chains for mining" This device has two types of hoppers:　　BD and DH types are deep type buckets that are generally suitable for conveying dry, loose, easy to throw out, and well flowing materials such as cement, coal blocks, crushed stones, grains, etc　　The AD and AH types are a type of bucket that is shallower than a deep bucket and is suitable for use with lower fluidity Slightly wet materials such as sand, coal, chemical raw materials, etc　　3. The head, tail, and middle casing of this machine have been sealed, resulting in minimal material and dust spillage and minimal environmental pollution　　4. This machine is used for mixing or gravity unloading, and for scoop feeding　　5. The upper wheel of the GTH high-efficiency bucket elevator is an assembled chain wheel, and the wheel rim is connected to the wheel body with high-strength steel bolts. After the chain wheel wears out, only the wheel rim needs to be replaced, making maintenance convenient, saving raw materials, and reducing maintenance costs The lower wheel has been replaced with a flanged wheel, completely changing the defects of high cost and easy detachment of the original double chain wheel　　6. The upper wheel of the GTH model adopts a beveled edge light wheel, which has a self centering function to avoid the conveyor belt from deviating　　7. This model is equipped with a level gauge and a speed controller at the bottom, which users can customize according to their needs to achieve the purpose of automatic electrical control　　8. There are two types of tensioning devices for this machine. For models with a lifting height of no more than 25m, screw tensioning is generally used. For models with a lifting height greater than 25m, gravity tensioning is used. For special requirements, please specify when placing an order　　Technical parameters of high-efficiency bucket elevator　　Table of Conveying Capacity of PTH Type High Efficiency Bucket Elevator with AD Type Bucket:Dou Kuan mm160200250315400500630800100012501600hopper capacity（L）2.64.16.51016254061102161255Conveying capacity m3/hφ=100%456095135210290460655105015002080φ=75%34457110115821834549178811251560maximum lifting height m7070707070707070707070　　Table of Conveying Capacity of PTH Type High Efficiency Bucket Elevator with BD Type Bucket:Dou Kuan mm160200250315400500630800100012501600hopper capacity（L）1.92.94.67.41219294774117184Conveying capacity m3/hφ=100%32427010015522033548076010901500φ=75%243253751161652513605708181125maximum lifting height m8080808080808080808080　　Table of Conveying Capacity of GH Type High Efficiency Bucket Elevator with AH Type Bucket:Dou Kuan mm160200250315400500630800100012501600hopper capacity（L）2.64.16.51016254064102161255Conveying capacity m3/hφ=100%30476510014520535047572011351800φ=75%233549751101542623565408511350maximum lifting height m6060606060606055554040　　Table of Conveying Capacity of PTH Type High Efficiency Bucket Elevator with BH Type Bucket:Dou Kuan mm160200250315400500630800100012501600hopper capacity（L）1.62.94.67.41219294774117184Conveying capacity m3/hφ=100%213345751101552553455208251300φ=75%1625345682116190259390618975maximum lifting height m7575757575757570705555

View details >

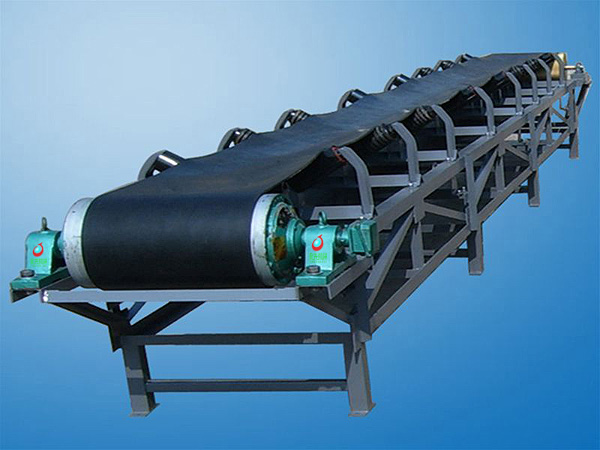

DTII Belt Conveyor

Product Features

　　DTII belt conveyor is a universal continuous conveying equipment that uses cotton canvas, nylon, polyester canvas, and steel wire rope core conveyor belts as traction components. It is widely used in industries such as metallurgy, coal, ports, and chemical engineering to transport bulk materials or finished items. This equipment has the characteristics of large transportation capacity, high climbing ability, low operating costs, and convenient maintenance. It is suitable for conveying materials with a loose density of 500-2500kg/m ³, and the working environment temperature is usually -5 ℃ -40 ℃. Its structural design can meet the requirements of horizontal and inclined conveying, and achieve automated control of the transportation system.　　Structural composition　　The main components of DTII belt conveyor include conveyor belt, drive device, transmission drum, reversing drum, idler roller, tensioning device, cleaner, unloader, frame, etc. These components can be selected and designed according to the requirements of the conveying process and terrain conditions, forming different conveying forms, such as combinations with convex and concave arc segments.　　Working principle　　The friction between the transmission drum and the conveyor belt drives the continuous operation of the tape, thereby conveying the material from the starting point to the end point. The equipment needs to be started with no load and operated according to safety operating procedures, including maintenance measures such as adjusting tape deviation.　　Application scope　　Suitable for industries such as coal, metallurgy, and mining, transporting various bulk materials and finished items. The conveying line can be arranged in a horizontal or inclined form as needed, and the maximum inclination angle depends on the type of material and conveying conditions. In special environmental temperatures, corresponding protective measures should be taken to ensure the normal operation of the equipment.

View details >

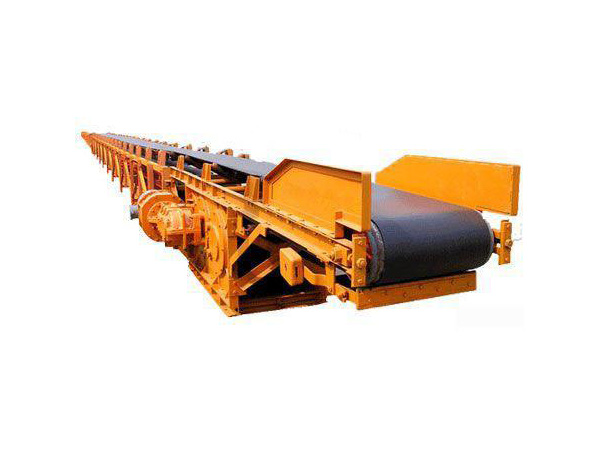

Belt conveyor

Product Features

　　Product Introduction　　The TD series belt conveyor is widely used in metallurgy, coal, transportation, water and electricity industries to transport bulk materials or finished items due to its advantages of large conveying capacity, simple structure, easy maintenance, low cost, and strong universality. According to the requirements of the conveying process, it can be conveyed by a single machine, or by multiple machines or combined with other conveyors to form a horizontal or inclined conveying system.　　Mobile conveyor JPG　　Working principle　　The TD75 belt conveyor mainly consists of two end rollers and a closed conveyor belt tightly fitted onto them. The drum that drives the conveyor belt to rotate is called the drive drum (transmission drum); Another drum that only changes the direction of the conveyor belt movement is called a reversing drum. The driving drum is driven by an electric motor through a reducer, and the conveyor belt is dragged by the frictional force between the driving drum and the conveyor belt. The driving drum is usually installed at the discharge end to increase traction and facilitate dragging. The material is fed into the feeding end and falls onto the rotating conveyor belt, which is driven by the friction of the conveyor belt to be transported to the unloading end for discharge.　　Scope of application　　The TD75 belt conveyor is suitable for horizontal or inclined transportation of bulk materials, bagged materials, or packaged items such as coal, gravel, ore, sand, cement, fertilizers, broken glass, grains, etc. in powder, granular, and block forms. According to the requirements of the conveying process, it can be used for single machine conveying, or for multi unit synthesis of horizontal, inclined, or angled transportation requirements to complete material conveying.　　Basic structure　　1. Drive part: It consists of an electric motor mounted on a base welded from steel, a high-speed coupling, a reducer, and a reduction coupling. According to the layout requirements: the drive device is equipped with two types of left and right installations. In addition, our company has oil cooled electric rollers with power ranging from 1.5KW to 13KW and speeds of 0.80, 1.0, and 1.25;　　2. Rolling part: divided into two categories: transmission drum and reversing drum;　　3. Roller section: divided into groove shaped, parallel, self-aligning, and buffering rollers, etc;　　4. Cleaning section: divided into spring cleaner and empty section cleaner;　　5. Unloading section: divided into fixed plow unloader and electric unloader;　　6. Braking part: There are two types: belt backstop and roller backstop;　　7. Attachments: casing, guide groove, funnel, etc.　　Performance advantages　　1. Simple structure, easy maintenance, low energy consumption, and low usage cost;　　2. It can achieve multi-point loading and unloading;　　3. Low noise, suitable for work environments that require relatively quiet conditions;　　4. Strong interchangeability and universality of main components;　　5. The conveying is smooth and reliable, with no relative movement between the material and the conveyor belt, which can avoid damage to the conveyed material;　　6. Strong conveying capacity, long conveying distance, and reliable operation, easy to achieve automation and centralized control;　　7. Wide conveying range, capable of continuously conveying wet, dry, powdery, and block shaped materials as well as finished items;　　8. Equipment with special requirements for heat resistance, cold resistance, waterproof, anti-corrosion, explosion-proof, flame retardant, etc. can be customized according to different conveying processes and working environments.
