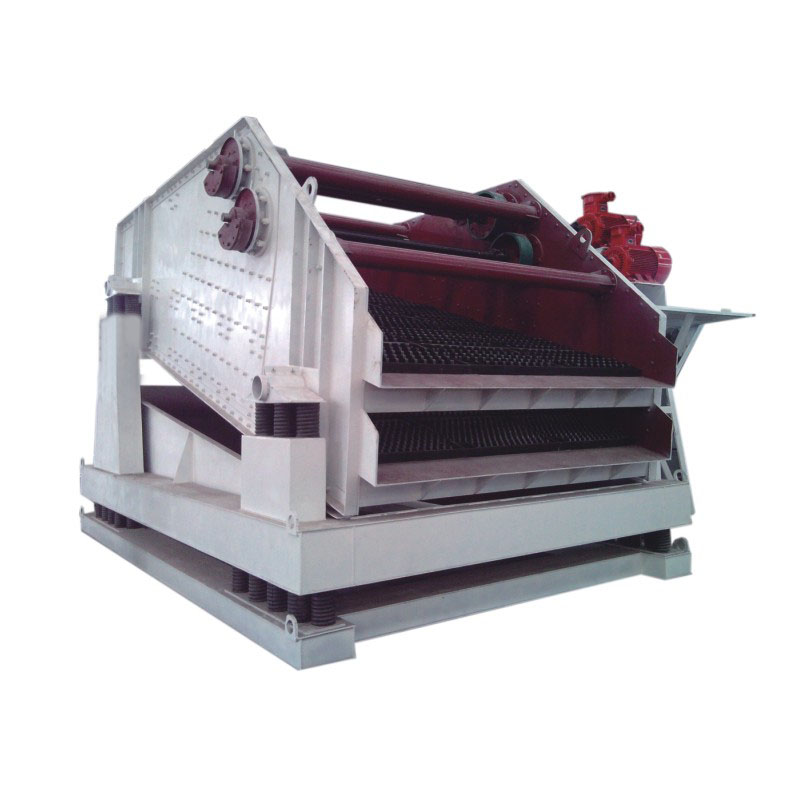

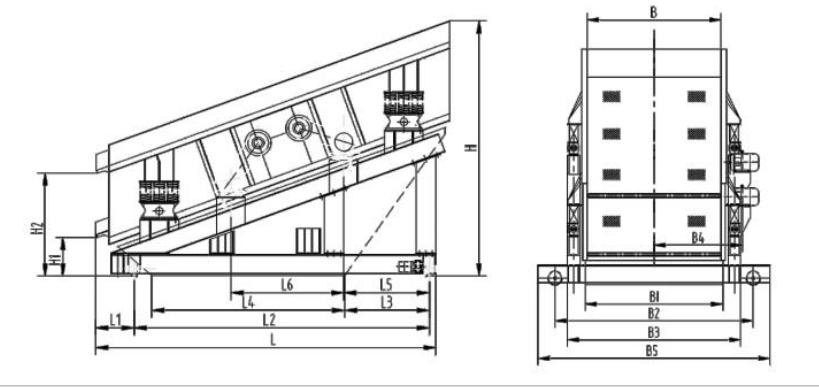

Product details:　　The YA (K) series large circular vibrating screen is a large-scale screening equipment developed for the mining industry, with a circular trajectory for material transportation. It is suitable for use when material particle size classification is large, and has the characteristics of large processing capacity, high screening efficiency, durability, and easy maintenance.　　Working principle and structural characteristics:　　Working principle: The machine consists of a screen body, damping spring, excitation device, motor bracket, synchronous transmission belt or gear, motor, etc. This series of screening machines uses dual motors to drive two sets of exciters, and is connected by a toothed belt or gear to keep the two shafts synchronized and generate a circular motion trajectory, thereby achieving the purpose of screening.　　Structural features: This vibrating screen adopts shaft eccentricity or block eccentricity to produce eccentric vibration effect. The amplitude can be adjusted to meet the processing capacity by increasing or decreasing the counterweight to adjust the magnitude of the excitation force. Easy to use and maintain, with a low failure rate.　　Outline diagram:modelFeed particle sizeProcessing capacityelectrical machinerymodelPower KWYA（K）3061<300220-1300Y200L-430*22YA（K）3061<300220-1300Y200L-430*2YA（K）3073<300220-1300Y200L-430*22YA（K）3073<300620-1300Y200L-430*2YA（K）3373<300240-1400Y200L-430*22YA（K）3373<300680-1400Y200L-430*2YA（K）3673<300260-1500Y225M-445*22YA（K）3673<300740-1500Y225M-445*2
