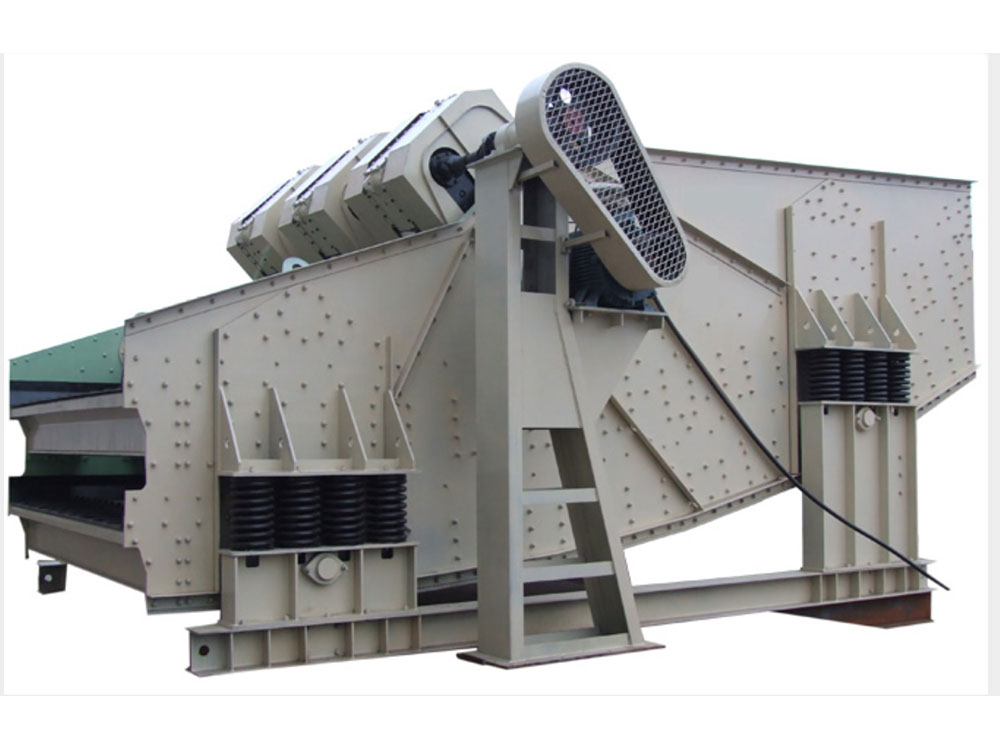

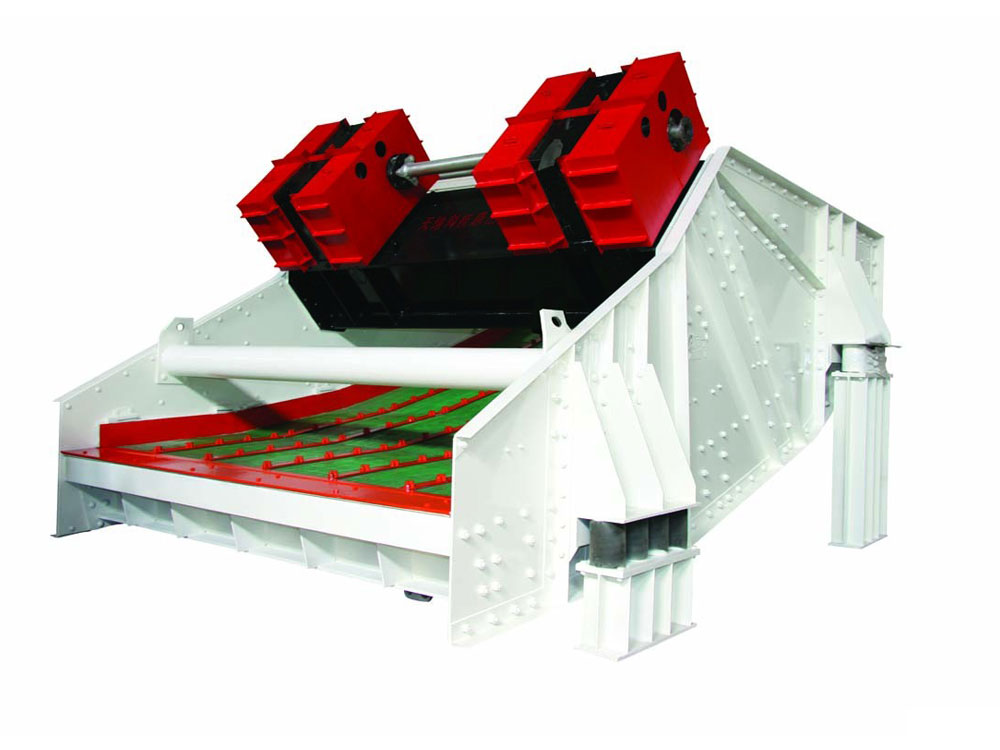

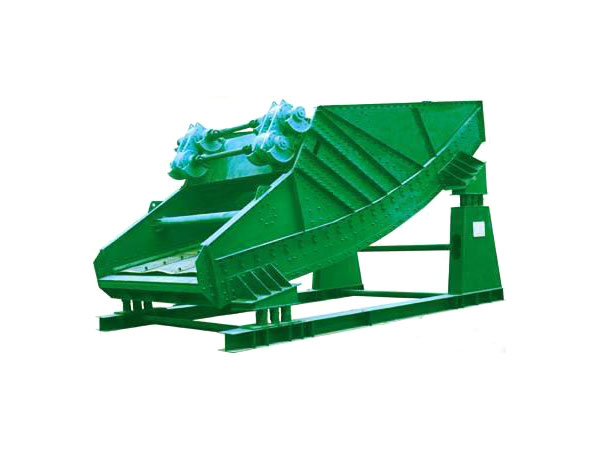

Product Usage:　　CZXD banana type vibrating screen machine is a self synchronous heavy-duty equal thickness screen widely used for screening and processing in large-scale mining and selection operations. On the basis of digesting and absorbing advanced foreign technologies, our company has independently designed and produced the CZXD banana type vibrating screen machine. Compared with traditional screens of the same specifications, the CZXD banana type vibrating screen machine has a larger processing capacity, with a processing capacity per unit area 1.5 to 2 times that of traditional grading screens. It is currently the most advanced and popular vibrating screen in terms of performance.　　working principle:　　The CZXD banana type vibrating screen machine has a sloping surface at the feeding end, starting at 34 ° and then descending at a certain number of angles until it reaches the discharging end at approximately 10 °. The screening surface adopts a zigzag form with different inclination angles, and the thickness of the material layer remains constant from the feeding end to the discharging end. The ratio of material quantity to flow rate on each screening surface is stable, and the material layer height is uniform. The screening efficiency is significantly improved, which is 1-2 times higher than the processing capacity of the same effective area vibrating screen. For materials with high fine particle content, especially when the material content is less than half of the graded particle size, CZXD banana type vibrating screen machine has extremely high screening efficiency.　　Technical parameters:purposemodelMaximum feeding particle sizemmProcessing capacity t/helectrical machineryPower KWgradeZXD-12*61≤300130-4202*11ZXD-12*61≤300130-4202*15ZXD-18*61≤300200-6402*15ZXD-18*61≤300200-6402*30ZXD-24*61≤300260-14002*22ZXD-24*61≤300260-14002*30ZXD-30*61≤300330-17002*30ZXD-30*73≤300360-18002*30ZXD-36*61≤300400-20002*30ZXD-36*73≤300440-22002*30ZXD-24*61≤300460-24002*45ZXD-42*86≤300650-28002*55dehydrationheavy mediumZXD-12*61≤8080-1502*11ZXD-12*61≤8080-1502*15ZXD-18*61≤80120-2102*15ZXD-18*61≤80120-2102*30ZXD-24*61≤80160-2402*22ZXD-24*61≤80160-2402*30ZXD-30*61≤80200-3602*30
