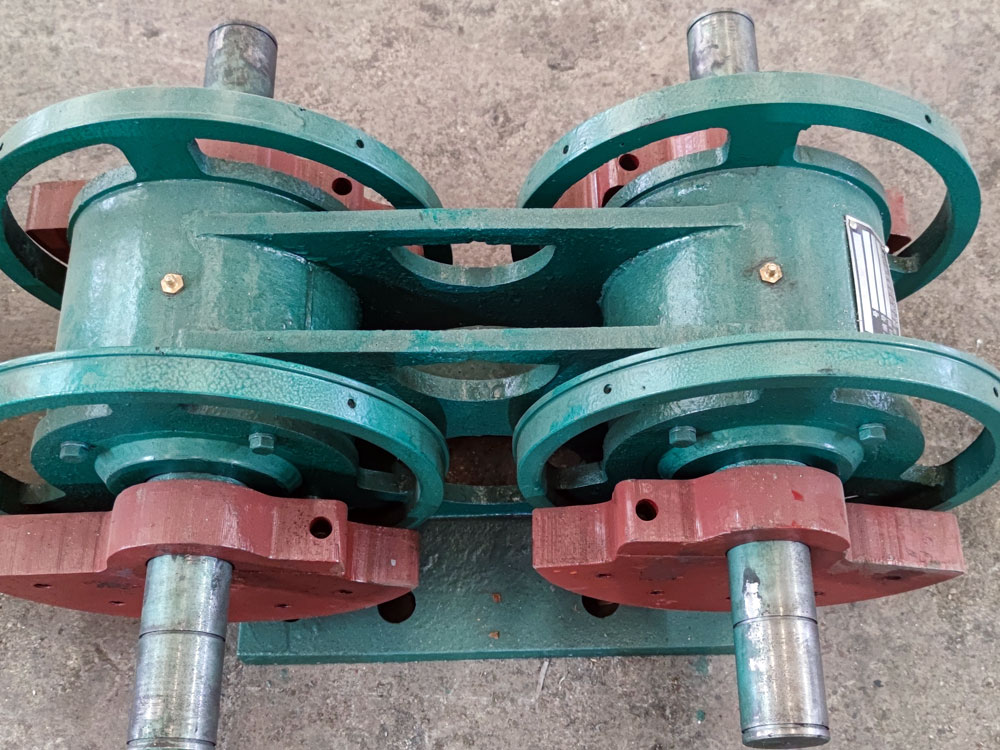

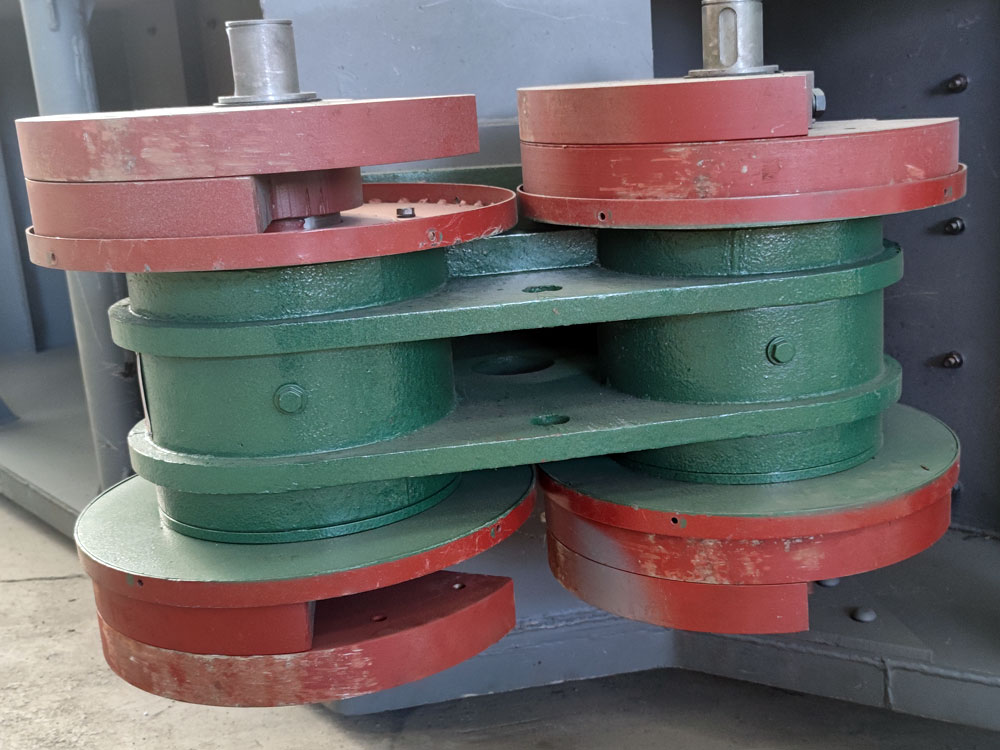

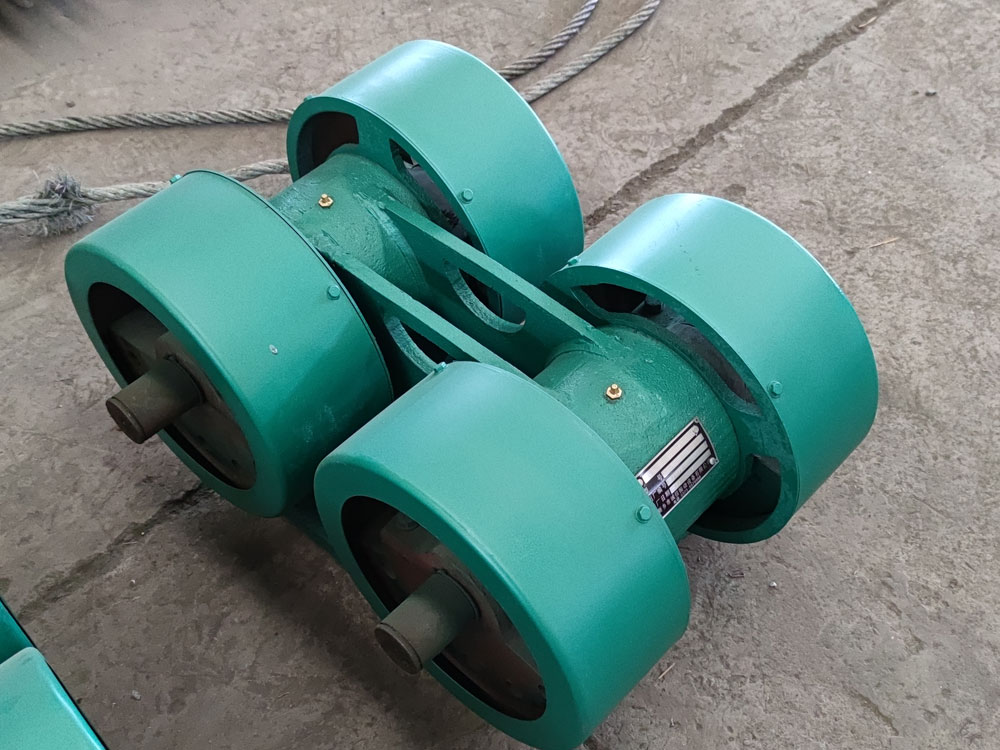

Product Introduction：　　Our company is a professional manufacturer of vibration equipment, producing vibration equipment and supporting products for various occasions - excitation sources.　　The CJZ series exciter is one of the updated and improved new types of exciter sources. The exciter is seat type and is used in conjunction with ordinary motors. The motor does not participate in vibration, and the exciter bearings are lubricated with thin oil or grease. It has a long service life and is economical and simple, making it an ideal exciter source for vibration equipment. This series of exciters is mainly suitable for large screening machines.　　working principle：　　The working principle of the vibration elastic exciter is to use a self synchronous inertial exciter. The two shafts of the exciter are driven by two motors with similar characteristics, relying on the principle of vibration synchronization to achieve constant speed and reverse rotation of the two shafts with eccentric blocks, thereby obtaining the excitation force.　　Structural composition：　　The vibration elastic exciter consists of two shafts, a box shell, an end cover, an eccentric block, etc.　　Technical features and advantages:　　1. Utilize the principle of self synchronization to generate linear vibration in vibrating machinery.　　2. When working, fix the exciter on the excited component, and the excited component will obtain the required vibration.　　3. Lubrication methods: grease lubrication and thin oil lubrication, customized according to customer requirements.　　4. The electric motor is installed on a fixed base on the side (left or right) of the vibrating machinery, and does not participate in vibration. The electric motor is connected to the vibrator with a universal joint shaft.　　5. The eccentric block is easy to adjust and disassemble.　　6. Both contact and axial labyrinth seals are used, with good sealing performance.　　7. Oil injection holes are installed above the casing to ensure good lubrication of the bearings.　　8. It has the advantages of light weight, small size, simple structure, easy installation and maintenance, and long service life,　　9. It has the characteristics of stable and reliable operation, flexible adjustment, and low maintenance.　　Outline diagram:modelexcitation forceMain structural dimensions  mmEquipped with motorShaft head keyKNABCDEFLMdΦ1hH4-φ4-MmodelpowerCJZ-30-630326184270400300480410422603522028Y112M-62.2*210*8CJZ-80-680120340210410400380486513503803227028M27*2Y132M-64*214*9CJZ-100-6100120340210410400380642538503803227028M27*2Y132M2-65.5*214*9CJZ-130-6130120340210410400380642538503803227028M27*2Y132M2-65.5*214*9CJZ-50-650160320240356400310517407503143023528M27*2Y132S-63*214*9CJZ-75-675160320240410400320484424503803227028M27*2Y132S-63*214*9CJZ-160-6160160320240460400320592524504563634537M36*2Y160M-67.5*214*9CJZ-180-6180160320240460400320754610544563634537M36*2Y160L-611*214*9
